 FEIG HF RFID, NFC and Payment Card Modules

The FEIG family of RFID devices includes modules, fixed readers, and antennas.  FEIG combines a sturdy, stable hardware design with frequently updated hardware and software.  Free software and training materials, available upon purchase, shows the capability of the readers and the low level messages needed to implement that functionality.  Development kits for C# and C++ are available under NDA.

In GlueLogix designs, FEIG technology is used to provide a consistent software interface across UHF and HF, including most standard HF protocols.  FEIG has a broad and deep offering.  The devices shown here are the most often used in GlueLogix designs for Label, Card and Plastics companies. If you need a different FEIG device, please
contact us for a quote.

This page shows FEIG reader modules that GlueLogix has used in designs since 2009.  They are not fixed readers since they have no cases.  They can be integrated into other products, or adapted to fixed configuration with the GlueLogix HF Reader Case

Module CPR.40

The CPR.40 is a versatile reader-encoder for standard chips from NFC tags to payment cards (with software encryption).

Features:
  • ISO14443-A and Mifare Inventory, Encode, Read Back through desFire
  • ISO14443-B Inventory, Encode, Read Back
  • NFC Standard and Kovio Inventory, Encode, Read Back
  • Inventories in 30 mS, so fast enough for continuous processes
  • USB models are Full Speed and Bus Powered with composite device endpoints, requiring Feig DLLs for interface
  • TTL RS232 models are 4800 to 230400 baud
  • Current consumption max. 130 mA
  • CE Mark is Class 2
  • FCC ID PJMCPR4030
  • Used in the GlueLogix Rewind Machine as the ISO14443 encoder
  • Conforms to the common footprint of the GlueLogix HF Reader Case

Variants:

  • ID CPR40.01-CDUSB Reader module for external antenna
  • ID CPR40.00-CDUSB Reader module
  • Two pin or u.fl antenna connections
  • GlueLogix offers the 5VTTL External Antenna model as Option C40 on our e-store, along with the GlueLogix HF Reader Case

Caveats:

  • This module does not support ISO15693 in any way
CPR.40 Internal
              Antenna USB

Click for big view (1 MB)

Module CPR.44

Similar to CPR.40, but mounts SAM cards for full access to hardware encryption features.  Useful for payment terminals and encoding of payment cards.

Features of the CPR.40 plus:
  • CPR44 Mounts SAM cards for full encryption functionality
  • CE Mark is Class 2
  • NOT compatible with the GlueLogix HF Reader Case!

Variants:

  • ID CPR44.01-4SCUSB Readermodule with 4SAM Slots - external Antenna
  • ID CPR44.02-4SCUSB Readermodule with 4 SAM Slots - internal Antenna
  • ID CPR44.02-CUSB Readermodule - internal Antenna
  • ID CPR40.01-CDUSB Reader module for external antenna.  No SAM slots, but pin compatible with CPR44 for cost management.

Caveats:

  • NOT compatible with the GlueLogix HF Reader Case!


CPR44

Click for big view (1 MB)

Module CPR.M02

The CPR.M02 is a vicinity reader and proximity encoder for ISO15693 chips.

Features:
  • ISO15693 Inventory, Encode, Read Back
  • ISO14443-A Inventory Only
  • ISO14443-B Inventory Only
  • 5VDC supply
  • 5V TTL level RS232 data interface
  • Inventories in 30 mS, so fast enough for continuous processes
  • CE mark is Class 2
  • FCC ID is PJMCPRM02
  • Used in the GlueLogix Rewind Machine as the ISO15693 encoder
  • Conforms to the common footprint of the GlueLogix HF Reader Case
  • 250 mW Output Power for Vicinity operation

Variants:

  • ID CPR.M02.VP/AB-B: Internal antena, maximum 38400 baud
  • ID CPR.M02.VP/AB-BA: External antena, maximum 38400 baud.  Purchase at GlueLogix Online Store, option C02
  • ID CPR.M02.VP/AB-C: Internal antenna, maximum 230400 baud
  • ID CPR.M02.VP/AB-CA: External antenna, maximum 230400 baud

Special Features:

  • Optional special firmware allows triggered operation through the module's non-isolated 5V TTL connections.
CPR.M02

Click for big view (1.3 MB)

Module ISC.M02

The ISC.M02 is a vicinity reader and proximity encoder for ISO15693 and other chips.

Features:
  • ISO15693 Inventory, Encode, Read Back
  • Icode1 (old proprietary Philips) Inventory, Encode, Read Back
  • Optional firmware upgrade for ISO18000-3M3 (aka HF Gen2)
  • Inventories in 30 mS, so fast enough for continuous processes
  • CE mark is Class 2
  • FCC ID is PJMISCM02
  • Used in GlueLogix Encoder-Applicator for HF Gen2
  • Conforms to the common footprint of the GlueLogix HF Reader Case

Variants:

CPR.M02

Click for big view (1.3 MB)

Common Footprint and GlueLogix Case

The GlueLogix HF Reader Case supports a CPR.40, CPR.M02 or ISC.M02 module, allowing it to function as a fixed RFID reader with rugged SMA connections.

Features:

Serial communications, power and SMA antenna interfaces for Feig HF RFID modules in a compact case.

Antenna connection: SMA Female to EXTERNAL antenna

Communication connection: DB9S, DCE (TX pin 2, RX pin 3, COM pin 5).  Tested with Digi Edgeport, Prolific and FT232 USB-Serial adapters.

Power: 9-24V AC or DC.  DC can be + or - tip.  Power jack is 2.1 mm post.  Power can optionally be fed on pins 1 and 9 of the DB9 connector, compatible with Feig MR100.

Dimensions: See Case Drawing

Software: Feig demo software and common USB-serial drivers on CD.

Supports Feig Models (not included)

  • Feig CPR.40 module for ISO14443-A, -B, including all NTAG and Mifare chips
  • Feig CPR.M02 module for ISO15693 and ISO14443-A chips, including all NTAG chips, Mifare Ultralight and Classic
  • Feig ISC.M02 module for ISO18000-3 Mode 3, aka. HF Gen2

Associated products:

  • FEIG MODLE NOT INCLUDED, see Feig Bare Modules
  • GlueLogix assembly and test with purchased module: purchase one hour Design Time with case and module. See Design Time

You may also need:

  • SMA Antenna cable
  • Power Supply, 9-24VDC, 2.1mm post
  • Serial Cable, DB9P
  • USB-Serial adapter

These items are standard and easy to find, but are NOT included with the purchase of SKU FeigA21.  Please contact GlueLogix if you have trouble locating these generic components.

Variants:

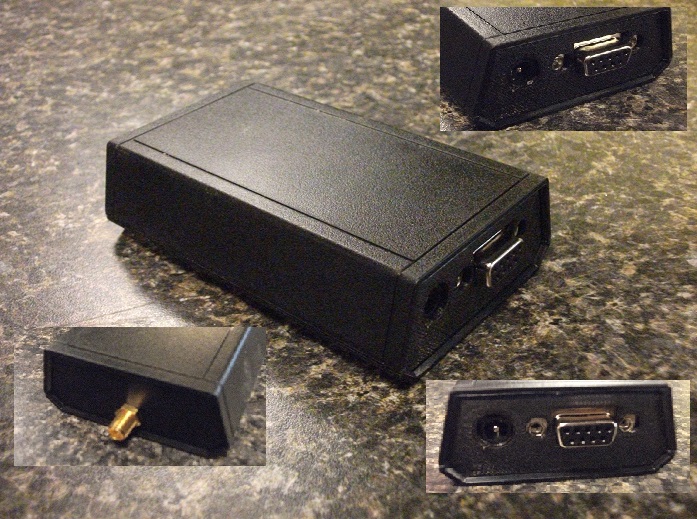

A21SingleSMA Case

Click for big view (262 KB)



Footprint Thumbnail

Click for big view (40 KB)

Integration Components

Contact GlueLogix


FEIG is an excellent general purpose hardware vendor.  GlueLogix is fully tooled for FEIG based projects, and can back that up with electronics and enclosure design, prototype construction, and product support. GlueLogix has been endorsed by FEIG USA as their official sales channel to Label, Card and Plastics companies in North America. GlueLogix acts as first line support for any Feig hardware or software you buy from us. We can show you how we use it, how to do the same yourself, or handle it for you.
